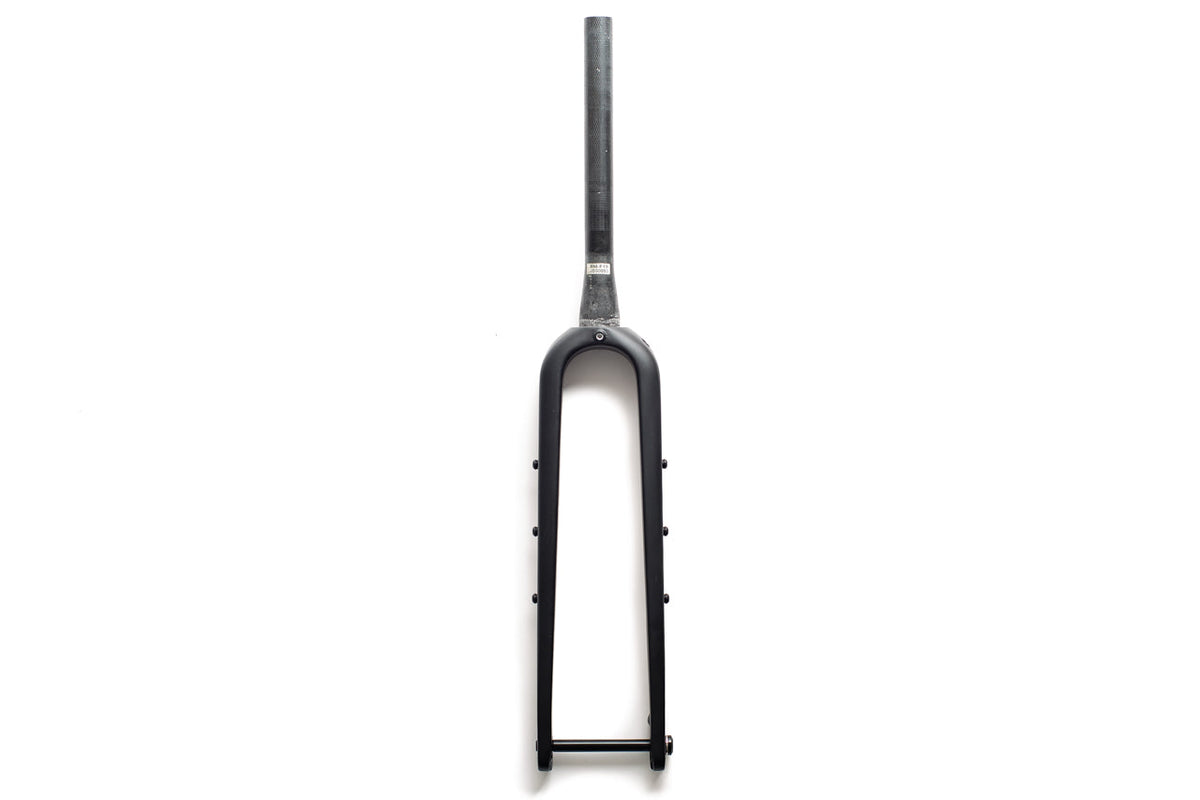

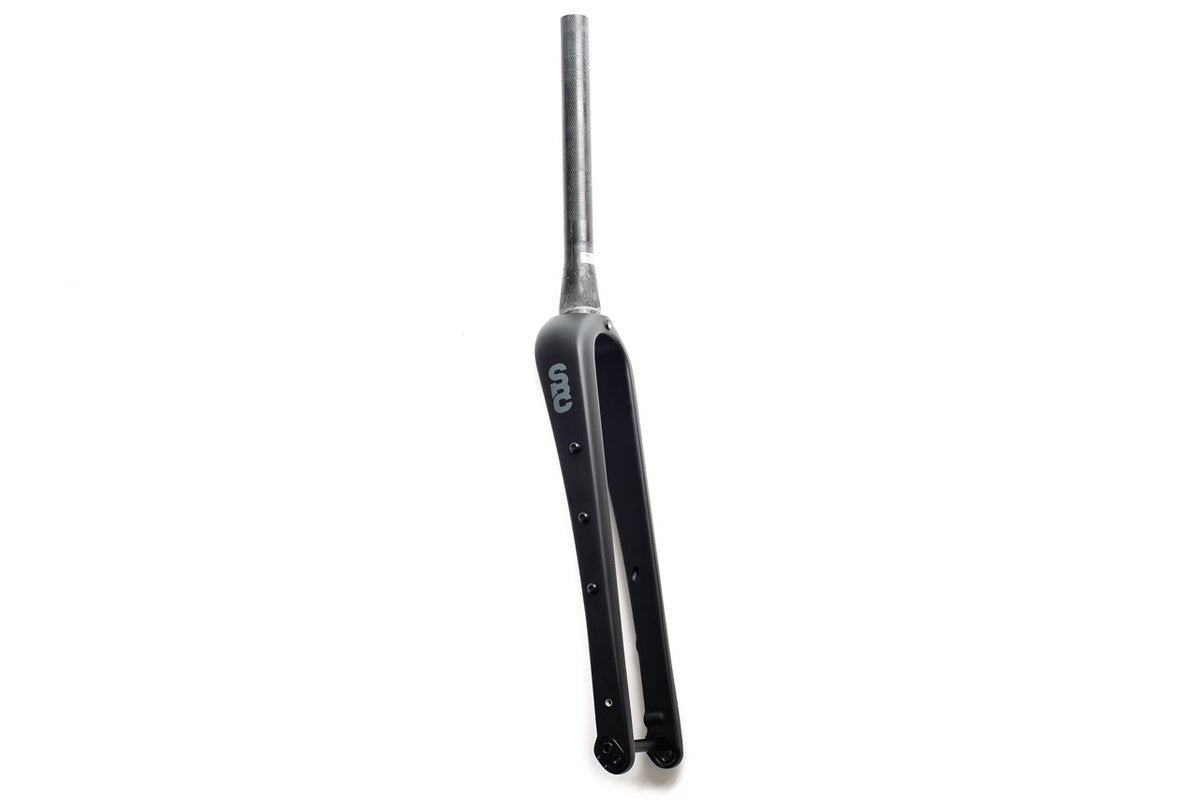

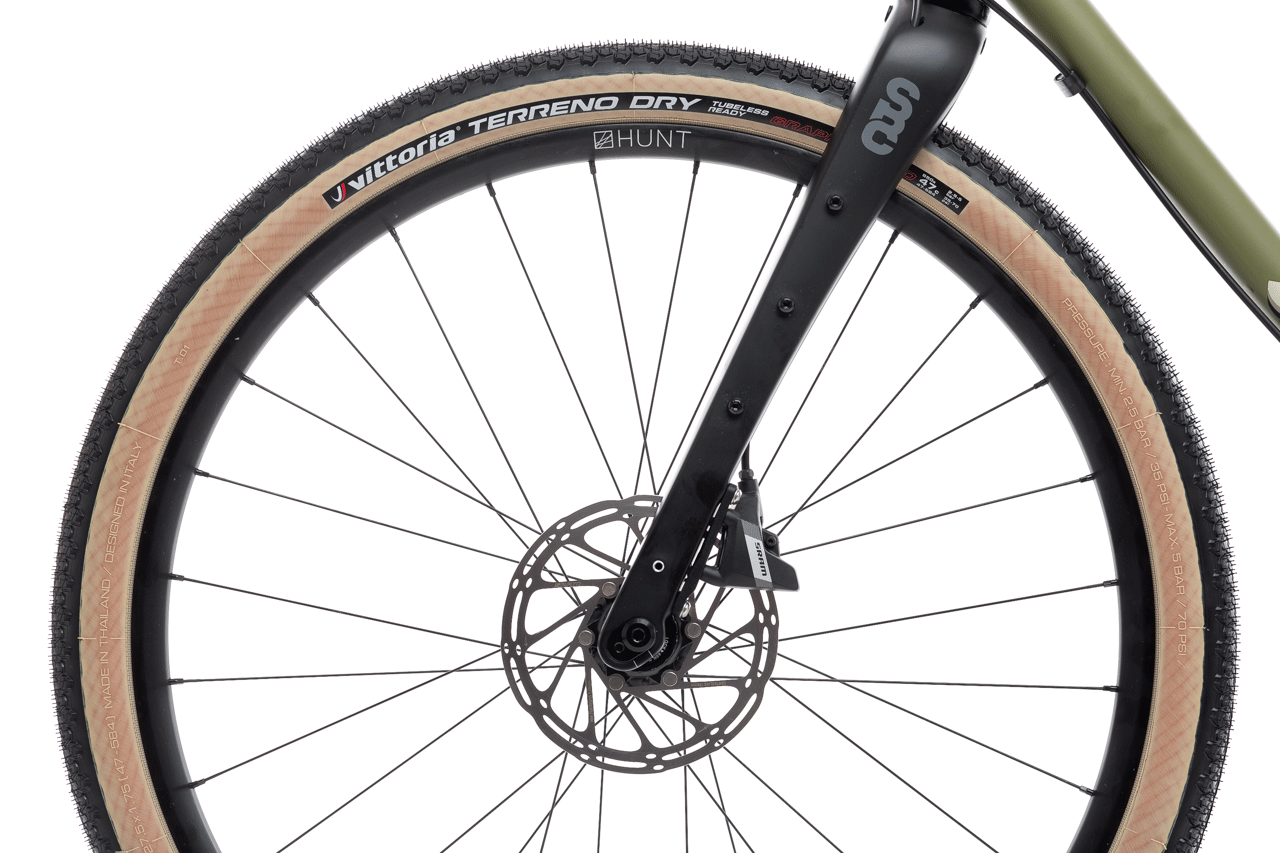

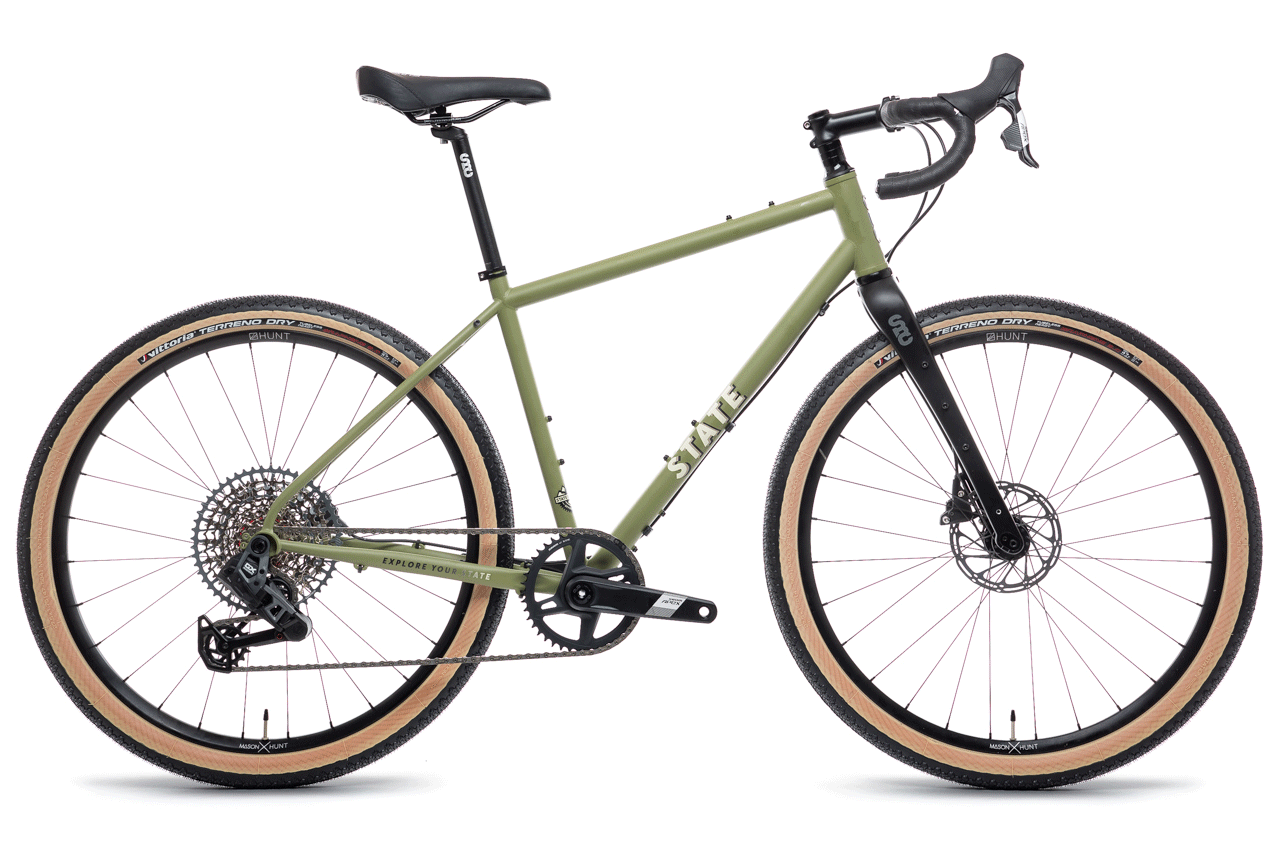

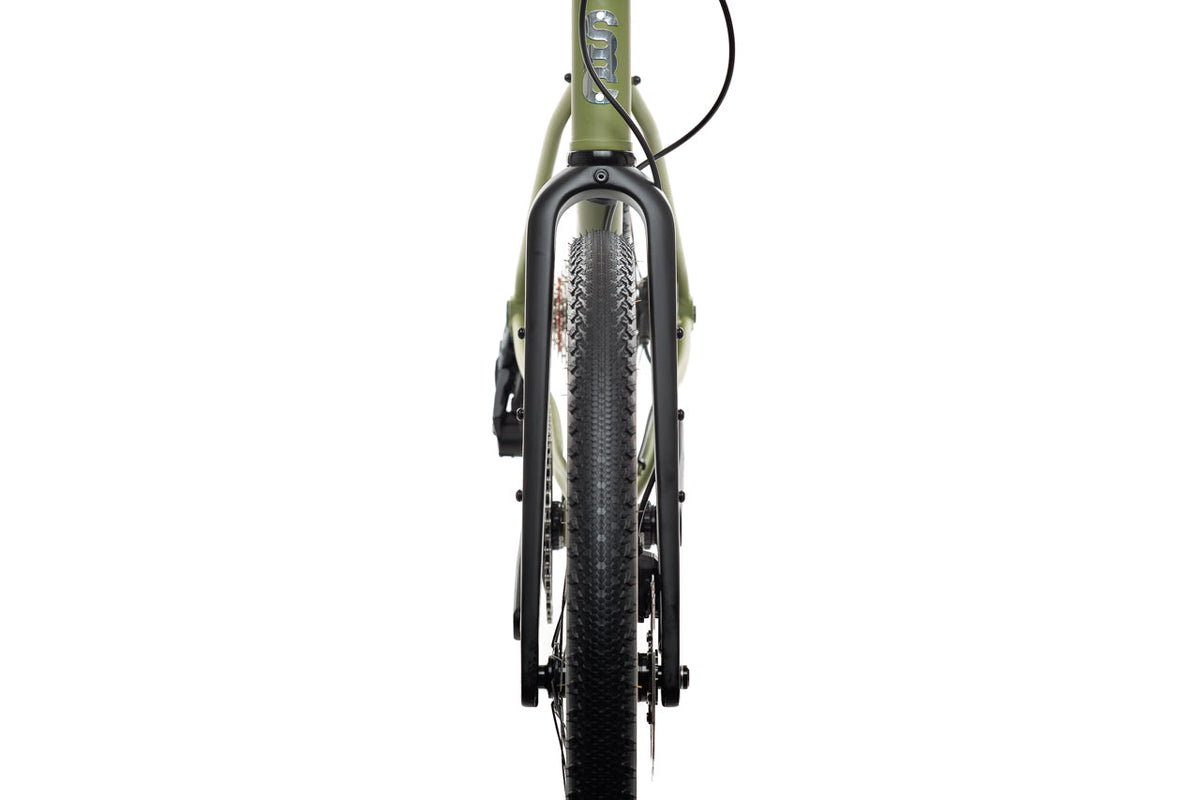

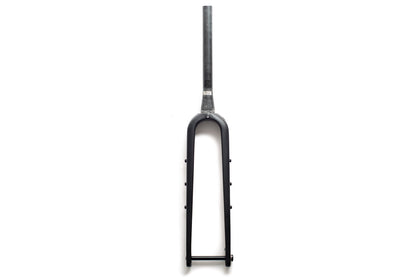

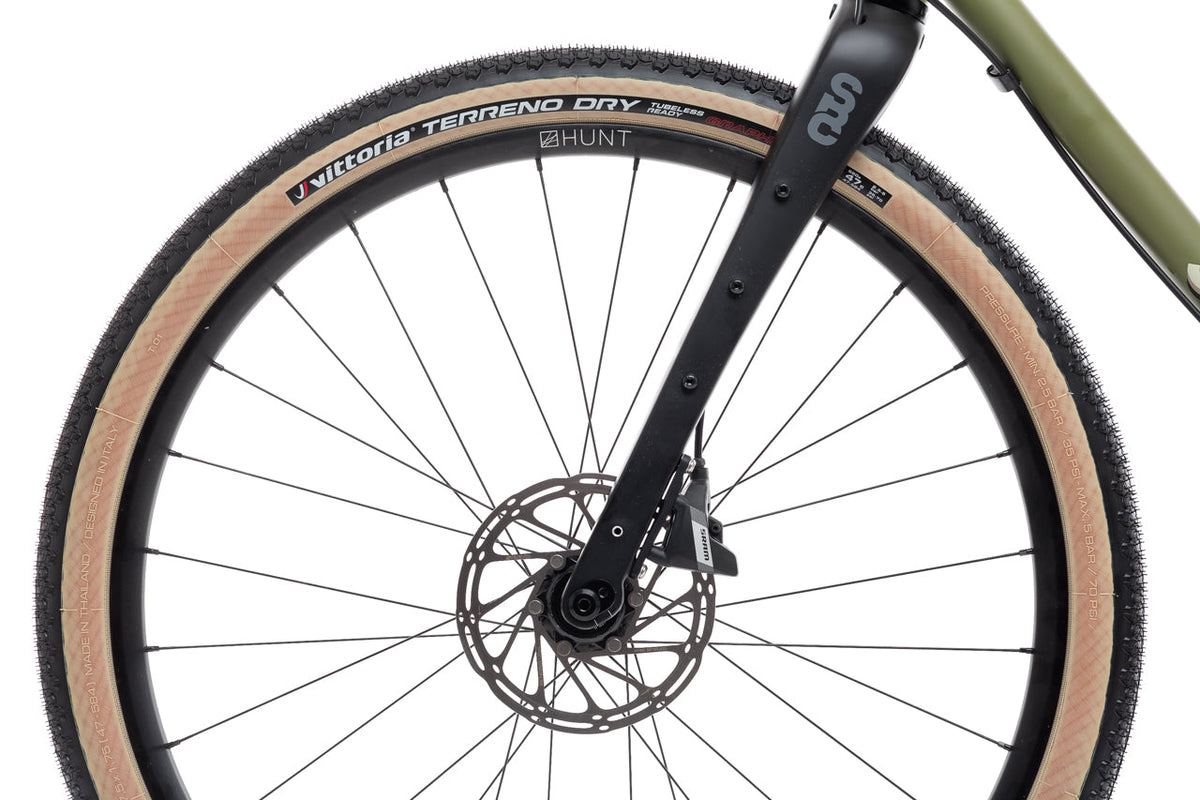

This carbon gravel bicycle fork uses a full carbon tapered steerer and carbon dropouts for off-road and all-road builds. Flip-chip hardware changes the offset between 49 mm and 55.5 mm, allowing a rider to choose a more responsive or more stable steering setup. Multiple mounting points support adventure equipment, and the included thru axle fits the stated dropout standard.
Key Features
Carbon-fiber construction keeps the uncut weight at 540 g

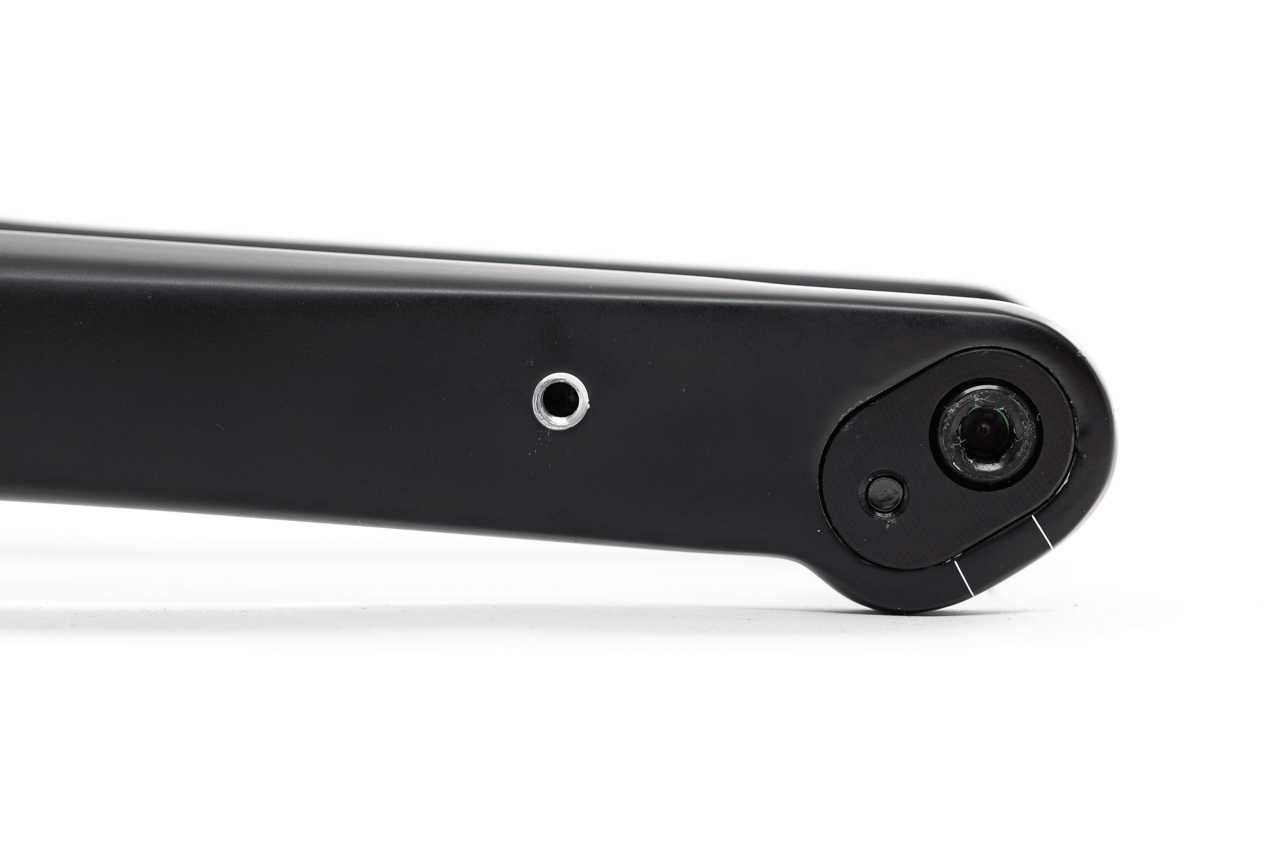

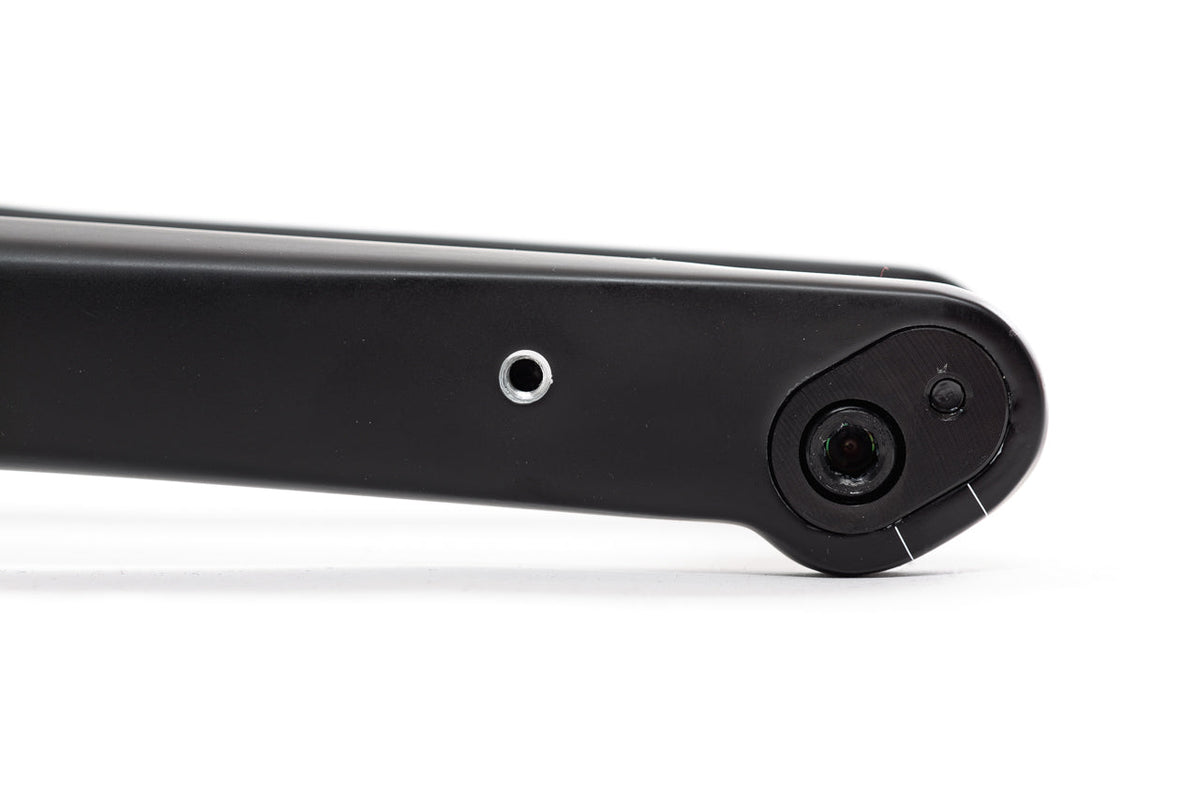

Flip-chip changes offset between 49 and 55.5 mm
Flat-mount interface supports a compatible disc brake
Multiple mounting points support gravel equipment
Included thru axle uses the stated 12 x 100 mm standard
Compare every listed dimension, interface, frame standard, or pack option with the intended bicycle before selection.
Specifications
Steerer: Full carbon, 1 1/8 to 1 1/2 inch tapered
Steerer length: 300 mm

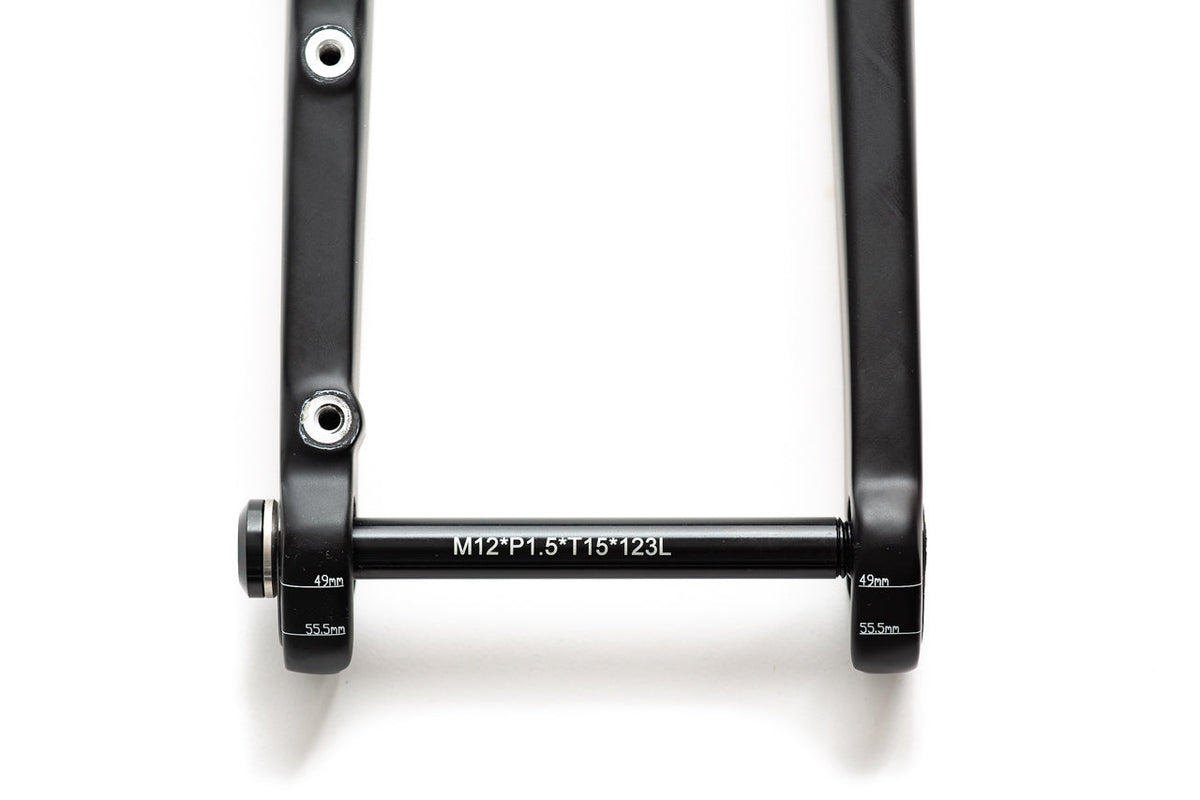

Dropout: 12 x 100 mm thru axle, M12 thread pitch
Axle-to-crown: 396 mm or 404 mm by offset
Maximum load: 25 kg
Inspect before each ride and follow the installation, torque, care, and safety guidance supplied with the component.
